Auto-Welding Production Line
The welding system is equipped with fully automatic loading and unloading manipulators, fully automatic workpiece press-fitting mechanism, laser cleaning mechanism, welding slag brushing mechanism, and defective material conveying channel. It can be expanded with online laser marking, ultrasonic flaw defection, gear heating system and other functions.
Application
- DCT Dual Clutch Gearbox
- AT Automatic Gearbox
- CVT Automatic Transmission
- MT Manual Gearbox
Types of Welding Products
- Parts Material: Carbon Steel, Ductile Iron
- Weld Depth: ≤ 4.0 mm (the Industry Standard)
- Weld Shape: Center Axis Symmetrical Rotating Parts (Horizontal or Vertical Weld)
Technical Parameters
|
Description
|
GW Series
|
|---|---|
|
Maximum Processing Diameter
|
150mm (Expandable)
|
|
Maximum Processing Height
|
300mm (Expandable)
|
|
Positioning Accuracy of Each Axis
|
0.02mm / 1000mm
|
|
Repeat Positioning Accuracy of Each Axis
|
0.02mm
|
|
Axis Maximum Speed
|
40m/min
|
|
Laser Power
|
3000W - 6000W
|
|
Focal Length
|
250 - 400mm
|
|
Number of Stations
|
Single Station / Bis Station
|
|
Machine Dimensions (Reference)
|
6000mm × 8000mm × 3000mm
|
|
CNC System
|
SIEMENS
|
|
Total Installed Capacity
|
≤ 120KVA
|

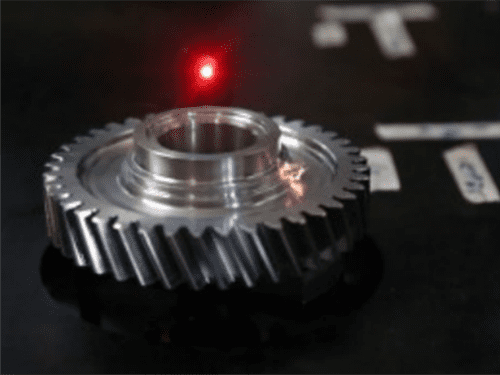

Sample Display
We deliver a full-service solution
