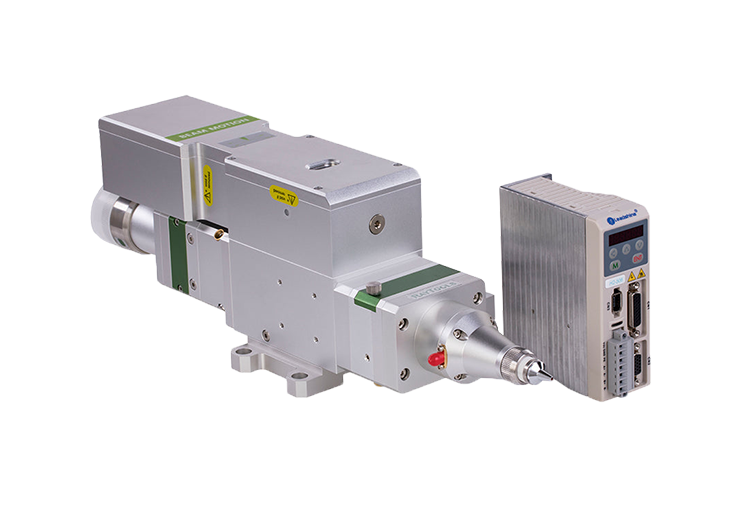

Raytools 0-3.3KW 3D Autofocus Fiber Laser Cutting Head BMH111

The Raytools BMH111 3D Autofocus Fiber Laser Cutting Head is designed for precision and efficiency. With features such as optimized optical configuration, automatic focusing, D30 composite lens groups, and a user-friendly drawer-type lens mount, it offers versatility for applications up to 3KW. Swift and accurate, this cutting head is the key to achieving the best optical quality and cutting effects in your laser cutting tasks.

Size

Product Features

Optimized optical configuration and a streamlined, efficient airflow design.
Automatic focusing range: +10 to -12mm, with an adjustment accuracy of 0.05mm.
Equipped with D30 composite lens groups, supporting a maximum fiber power of up to 3kW.
Maximum acceleration of the focus lens driver: 10m/s², with a maximum speed of 10m/min.
The drawer-type lens mount facilitates quicker and easier replacement of protective lenses.
Composite lens groups are used for beam collimating and focusing, ensuring the best optical quality and cutting effects.

Technical Parameters

BMH111 3D Laser Cutting Head Configuration
Power Rating	≤3.3kW
Fiber Interface	QBH
Collimator Focal Length	D30-C100
Focusing Lens	D30-F155/F200
Protective Windows	D24.9*1.5 (Upper Protective Windows)
Protective Windows	D27.9*4.1 (Lower Protective Windows)
Nozzle Styles	Single Layer, Double Layer
Nozzle Caliber	1.5-4.5mm, 1.0-4.0mm
Ceramics Type	RT-A-D32-H117-M14
