40000W Multi-module CW Fiber Laser Source RFL-C40000M-CE
Raycus RFL-C40000M-CE 40kW CW fiber lasers are specifically designed for cutting thick metals. They feature high electro-optical conversion efficiency, excellent beam quality, high energy density, a wide modulation frequency range, and exceptional reliability. With a long service life and maintenance-free operation, these lasers provide cost-effective and efficient performance in demanding industrial applications.
Application
- Industrial Cutting
- Industrial Welding
- Laser Research
Product Features
- High electro-optical conversion efficiency
- Output fiber length can be customized
- Output Cable: QP
- Maintenance-free operation
- Wide modulation frequency range
Technical Parameters
Optical Properties
- Average Output Power (W) : 40000
- Central wavelength (nm) : 1080±5
- Maximum Modulation Frequency (kHz) : 2
- Output Power Instability : ±1.5%
- Red Laser : Yes
Output Characteristics
- Output Connector : QP
- Output Fiber Core Diameter (μm) : 100 (customizable)
- Beam Quality BPP (mm.mrad) : ≤4.3
- Polarization State : random
- Output Fiber Length (m) : 30 (customizable)
Electronic Control Characteristics
- Input Power (V AC ) : 323-436, Three Phase-four Wire Connect.@47-63Hz
- Control Mode : RS232, AD, Ethernet
- Power Adjustment Range (%) : 10-100
Other Characteristics
- Dimensions (mm ) : 1145*1700*1410 (handle included)
- Weight (kg) : <1200
- Cooling Method : water cooling
- Working Temperature (℃ ) : 10-40

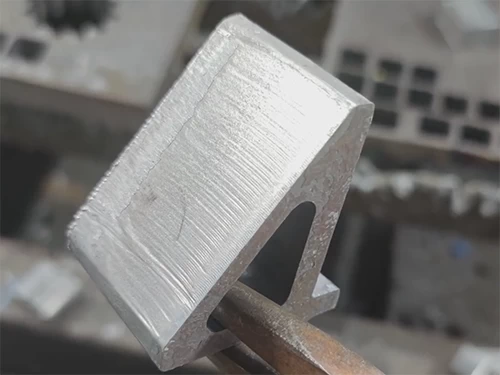

Sample Display
